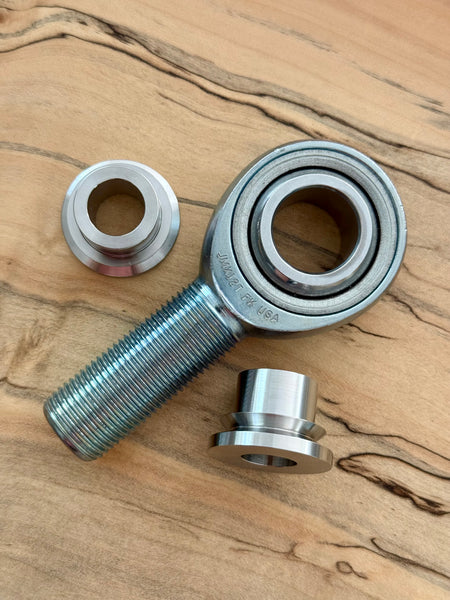

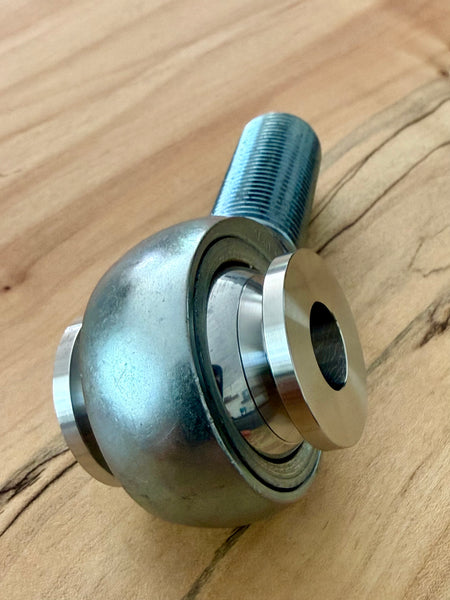

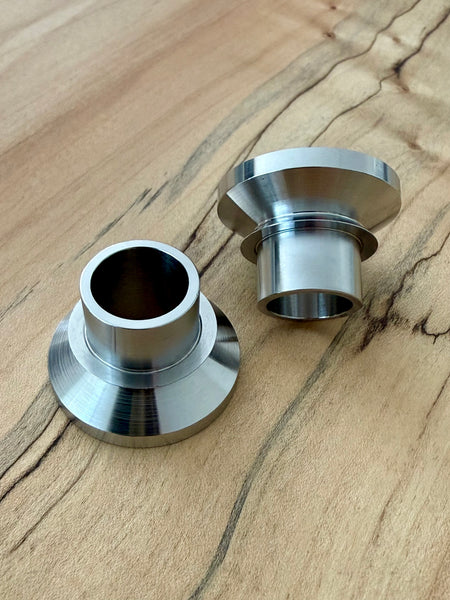

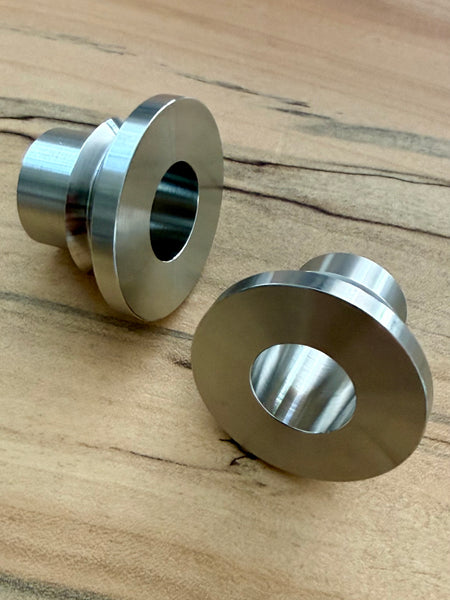

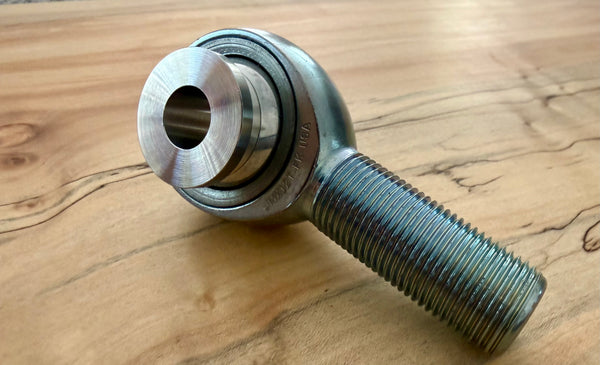

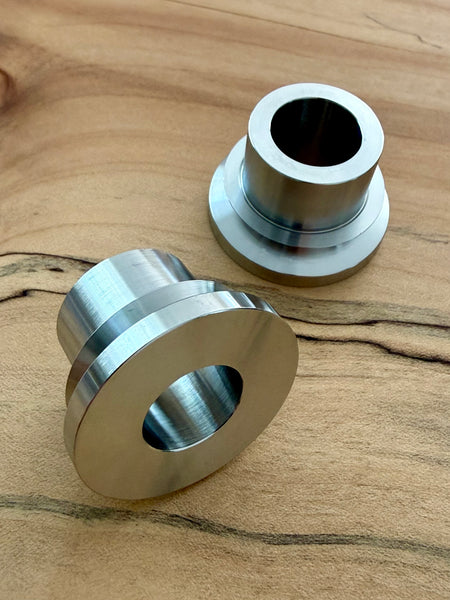

Eversen Performance high angle misalignment spacers are precision machined from 17-4 heat treated stainless steel. They feature a large diameter head that helps distribute loads across more surface area, helping to prevent spacers from wearing into mounting tabs or base materials. They utilize a 1/2" diameter bolt, have an assembled outside width of 1.50" , and achieve a usable 44 degrees of misalignment. Also used with Eversen Performance V2 Sway Bar Arms.
Sold in pairs
Rod end not included.

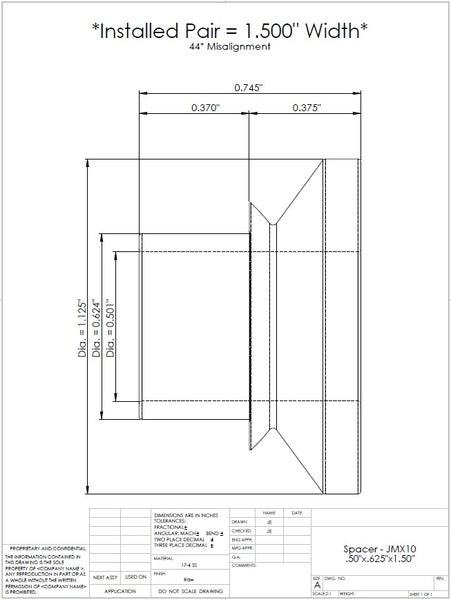

JMX10 - Designed for spherical rod ends with a ball diameter of 1.125" and a ball width of .750"

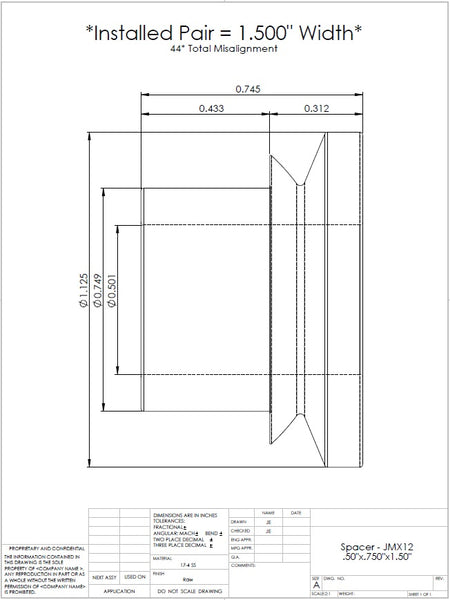

JMX12 - Designed for spherical rod ends with a ball diameter of 1.312" and a ball width of .875"
Will fit FK Bearings, Aurora Bearings, NHBB, and other manufacturers that the same ball diameter and width.
