Eversen Performance V2 doublers are ready to ship!

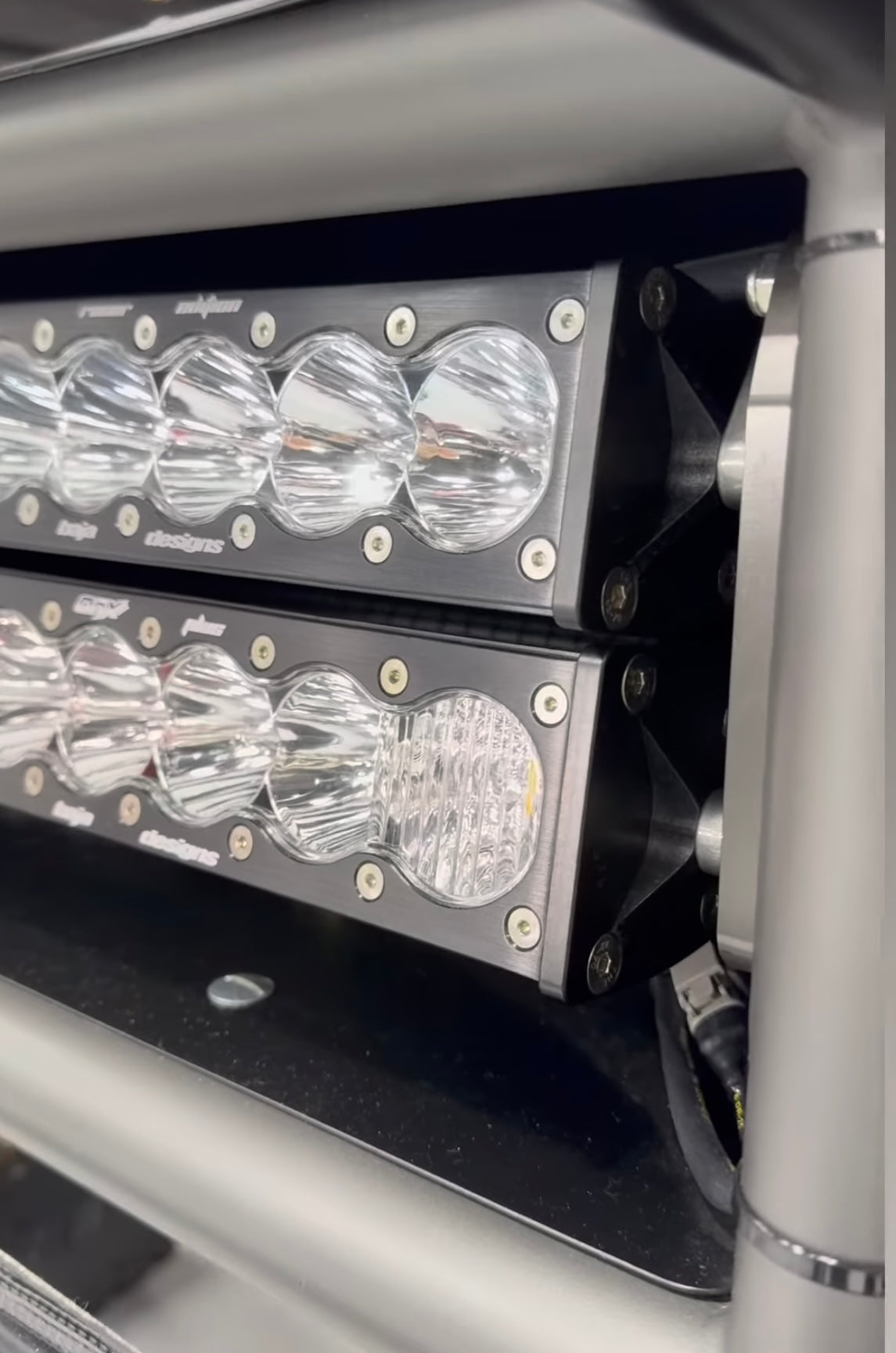

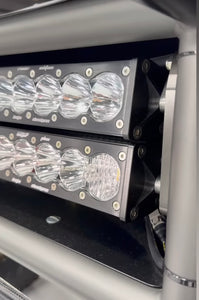

V2 Eversen light bar actuator - Double light bar configuration:
Run 2 bars at once with the V2 Eversen Light Bar Actuator - Doubler. We took our race proven V1 actuator, made it even better, and and gave you more options. Run twice the light, double shear rear pivot point, black zinc nickel coating, o-ring sealed pivots... nothing but the best.
The newly redesigned V2 Eversen Performance Light Bar Actuator is a compact, self contained light bar control system for on-the-fly adjustment of (2) two straight Baja Designs OnX6 LED bars, simultaneously. Utilizing best of the best components, with the flick of a switch you can instantly adjust your lights focal point up or down to accommodate for variable driving conditions. Whether it be high speed/low speed conditions, load variance, wind noise, acceleration/deceleration, trail conditions, etc... our actuator will put your light where you want it when you want it. Race vehicles with large rear fuel tanks can differ several inches in ride height between full and empty, which greatly changes your light trajectory. For vehicles with heavy electrical loads, or limited charging capabilities, it allows you to increase your light efficiency, while eliminating the need for excess lighting and electrical loads. For short wheelbase UTV's and 4x4's, it's great for panning up/down to see trail conditions and climbs/descents. Whatever your vehicle, the uses are limitless. All while drawing less than 2A of power.

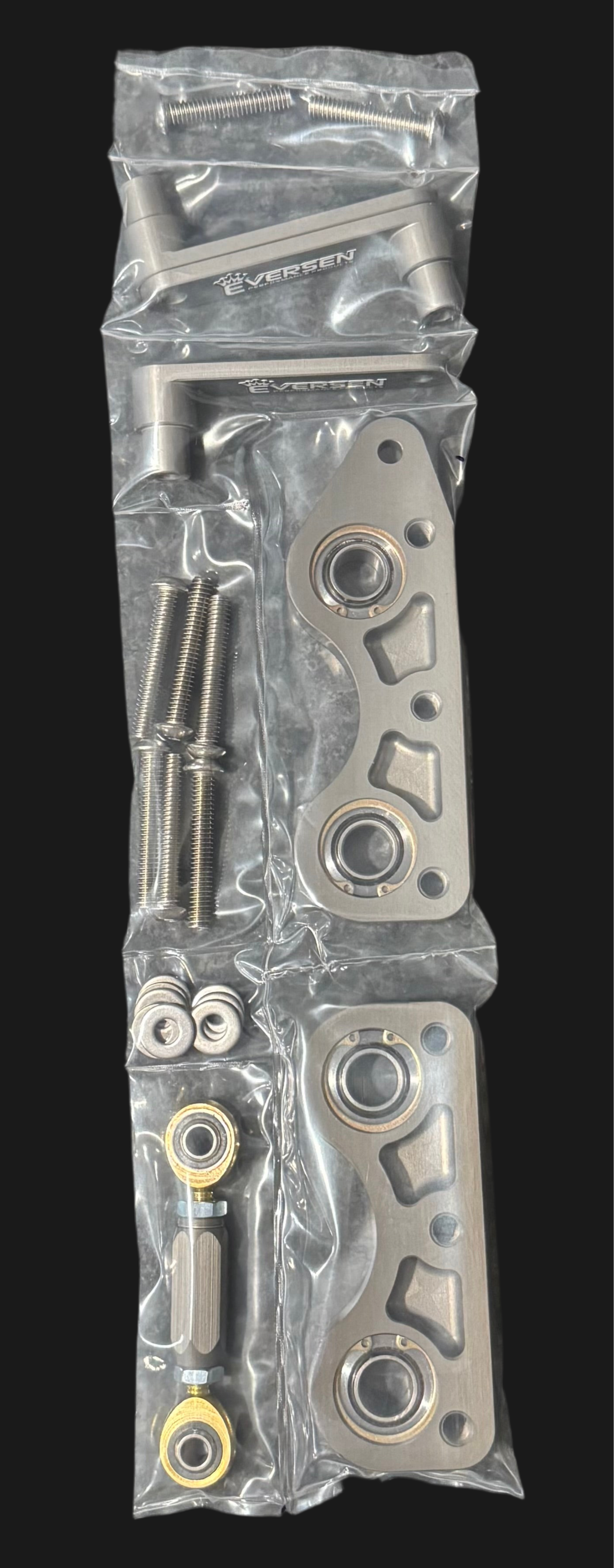

Features:
- High-force linear actuator

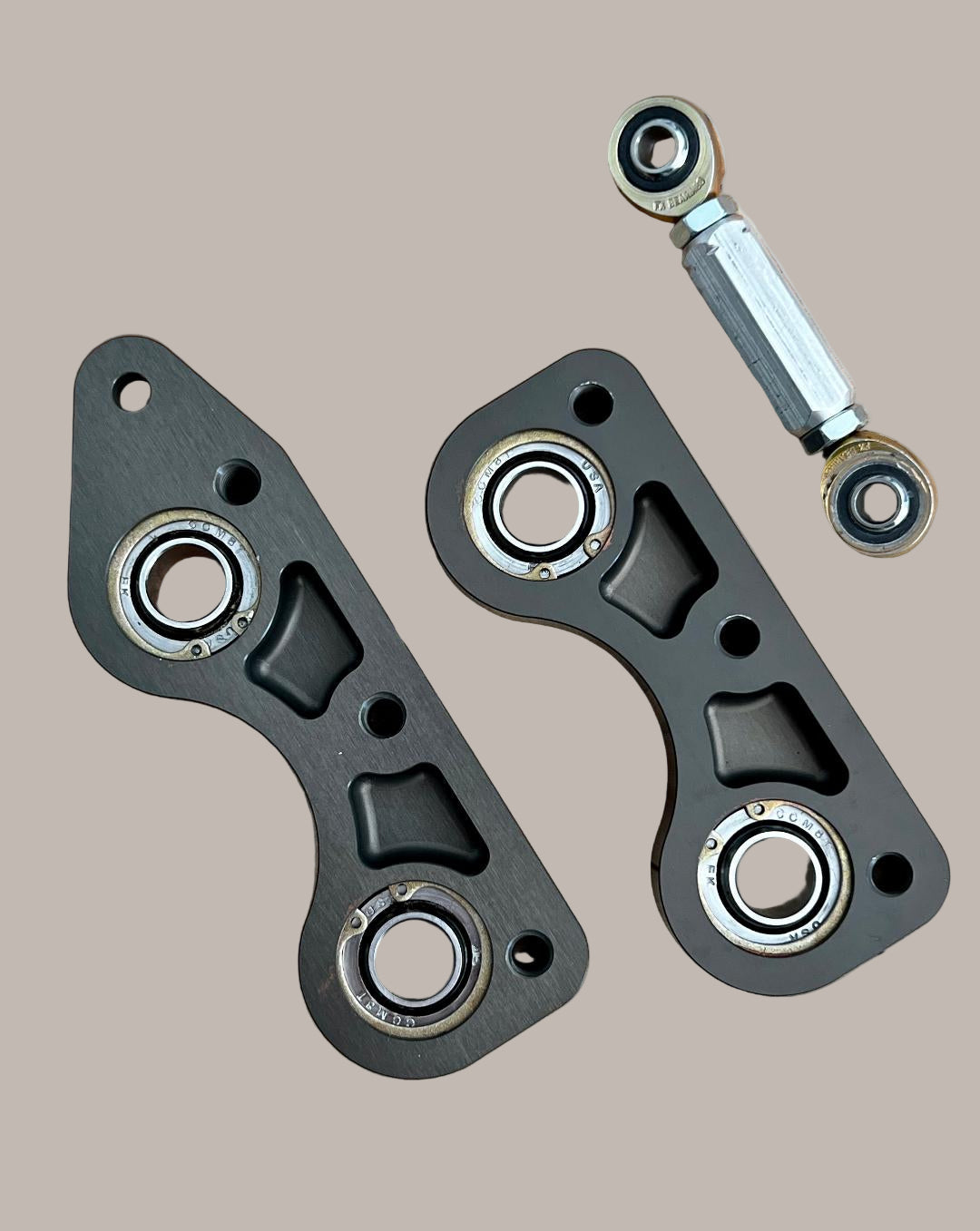

- Tig welded and black zinc nickel plated chassis
- Hard anodized CNC machined components
- Precision stainless steel shoulder bolts at pivots
- FK USA bearings and rod ends
- Low profile design
- O-Ring sealed pivots
- Shares similar mounting points as Baja Designs supplied mounting brackets
- Also available as a single bar configuration to accommodate 1 OnX6 LED bar on one actuator
- Wiring harness to connect to SwitchPro available separately
Specifications:
- Designed to accommodate 2 straight 10"-50" OnX6 LED bars
- Unit weight: 3lb 8oz (without light)
- Compact, the unit adds about 3/8" to the depth and 1/2" height to your light
- Draws less than 2A power
- US Patent # 11,339,939
Only for use with the Baja Designs Onx6 LED light bar series. Not for use with any other LED bars.
LED light bars sold separately
Download instructions here
